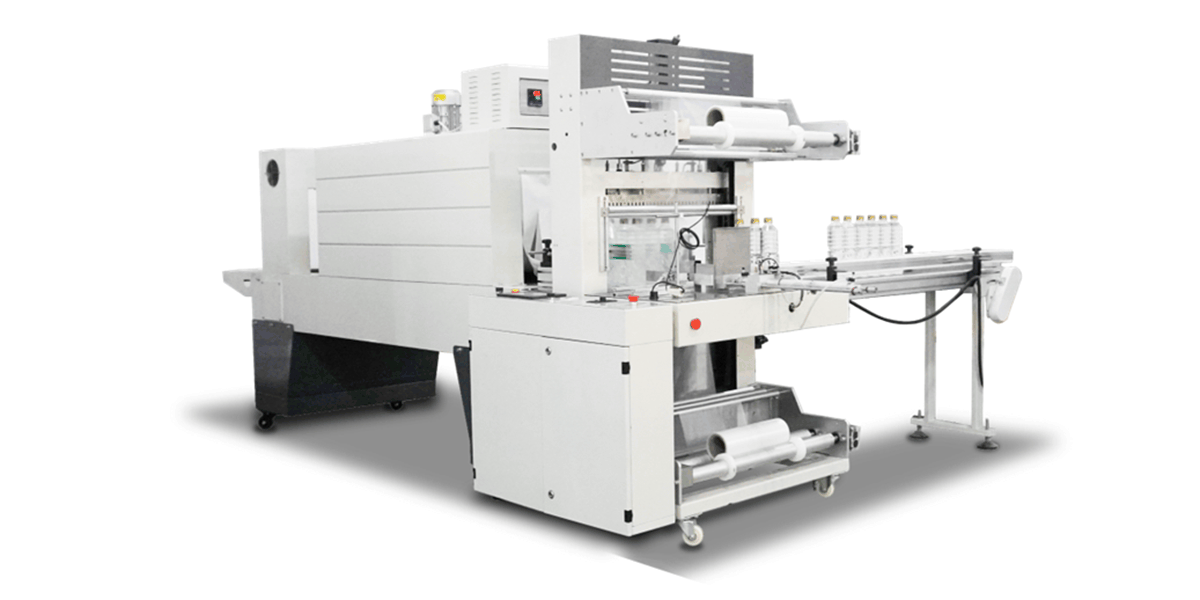

MODEL
|
RX-1000P
|
|
Sealing Type
|
Sleeve Sealer
|
|
Sealing Height
|
400MM
|
|
Packing Width
|
600MM
|
|
Packing Size
|
Width + Height < 1000MM
|
|
Max Film Roll Size
|
1200mm (Width) X 280mm (Outer Diameter)
|
|
Power Consumption
|
5.8 KW
|
|
Sealing Machine Dimensions
|
1800 X 1450 X 1800 MM
|
|
Packing Capacity
|
Max. 20 Packs per Minute (Depends on Product Size)
|
|
Installed Power
|
380V/50-60HZ/3Phase
|
|
Film Thickness
|
30-100 Micron (Minimum-Maximum)
|
|
Film Type
|
PE Film
|
|
Working Height
|
780-850 MM
|
|
Air Pressure
|
0.5MPA (5 BAR)
|
|
Sealing Knife
|
Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
|
|
Sealing Knife
|
Carbon Steel / Stainless Steel
|
|
Sealer Weight
|
550KGS
|
|
MODEL
|
RT-8060
|
|
Oven Size
|
2000MM (L), Entrance 800(W) X 600(H) MM
|
|
Tunnel Machine Dimensions
|
3440 X 1140 X 1850 MM
|
|
Rated Power Consumption
|
Max. 28 KW
|
|
Power Supply
|
380V/50-60HZ/3Phase
|
|
Conveyor
|
Chains with Rotating Silicon Coated Rods
|
|
Working Height
|
780 - 850 MM
|
|
Machine Material
|
Carbon Steel / Stainless Steel
|
|
Tunnel Weight
|
650KGS
|
